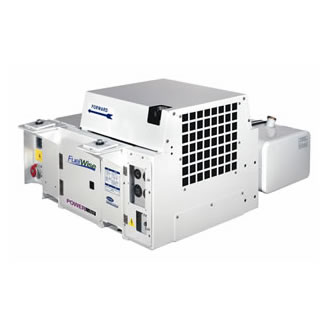

Truck Undermount Generator Carrier UG15

Industry-leading PowerLINE generator sets from Carrier Transicold are designed and built for one purpose: continuous, unattended operation for all refrigerated containers transported by road or rail. PowerLINE generator sets offer the ideal combination of horsepower, torque, and motor-starting capability and provide power to start any ISO reefer, anywhere it’s necessary.

Truck Undermount Generator Carrier UG15

SKU GEN-3PH-CAR-1 Categories , Tags , , , ,


  • All-steel fabricated frame construction with four-point plate mount system
  • High-efficiency air cleaner (standard dry element, optional oil bath)
  • Full-flow spin-on oil filter with internal bypass Integral fuel filter with water separator
  • Fuel Heater/Warmer
  • External in-line fuel strainer with a clear bowl
  • Stainless steel exhaust Stainless steel hinges and hardware
  • Driver-side controls Large aluminum service access door with quick-release latch
  • Battery access door
  • Forklift pockets allow mounting from either side
  • 12V DC maintenance-free battery
  • Safety stop controls for low oil pressure
  • High water temperature
  • Frame and sheet metal components powder-coated for durability
  • Patented E-coat tube and fin radiator
  • Large oil pan capacity extends running hours between oil changes.
  • Fuel gauge, colour-coded for easy level identification from a distance DC ammeter
  • Power output circuit breaker
  • Preheat and Start/Run/Off switches
  • Coolant overflow bottle
  • Engine hour meter 68-gallon (257-litre) integral fuel tank
  • Oil pressure and water temperature gauges
  • Solid-state battery charger
  • V2203L-Dl-E3B 4-cylinder
  • 2.2-litre direct-injection 32 HP/23.9 KW diesel engine
  • Nominal 15 kW brushless self-regulated
  • 460V output generator
External Dimentions
Length 1549 mm (61 in)
Width 1316 mm (52 in)
Height 797 mm (31.3)
