Description
- Safety stop controls for low oil pressure
- Stainless steel hardware

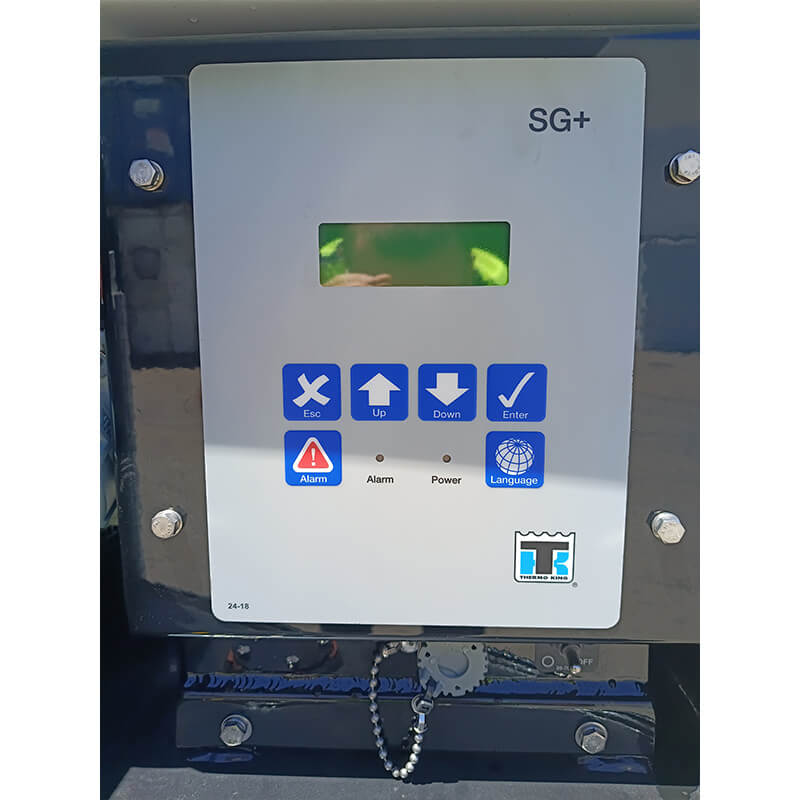

- Low-mounted controls

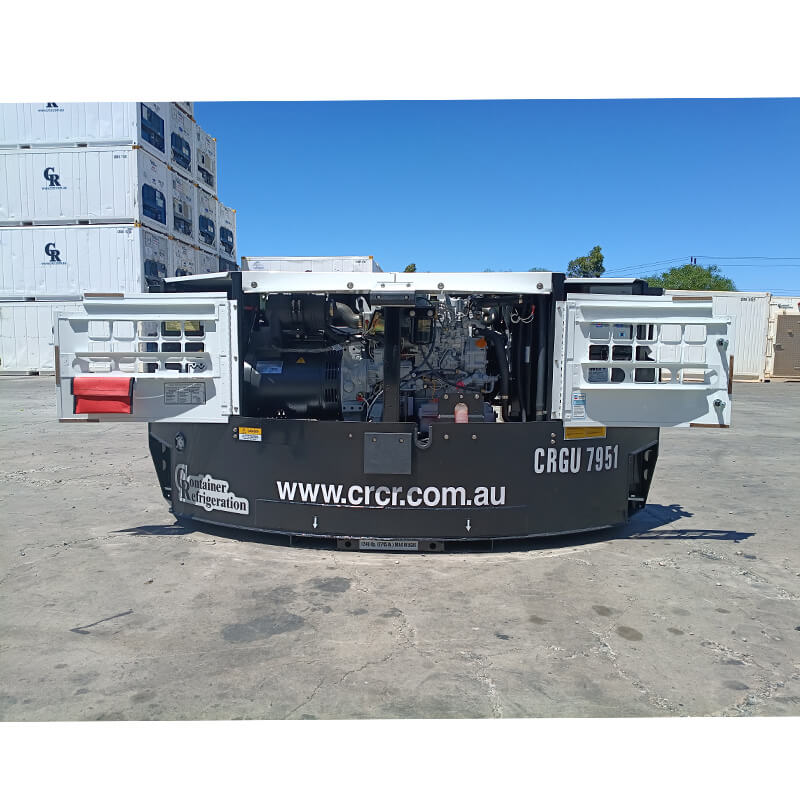

- Large aluminum service access door with self-locking/quick-release latch
- Enclosed forklift pockets<

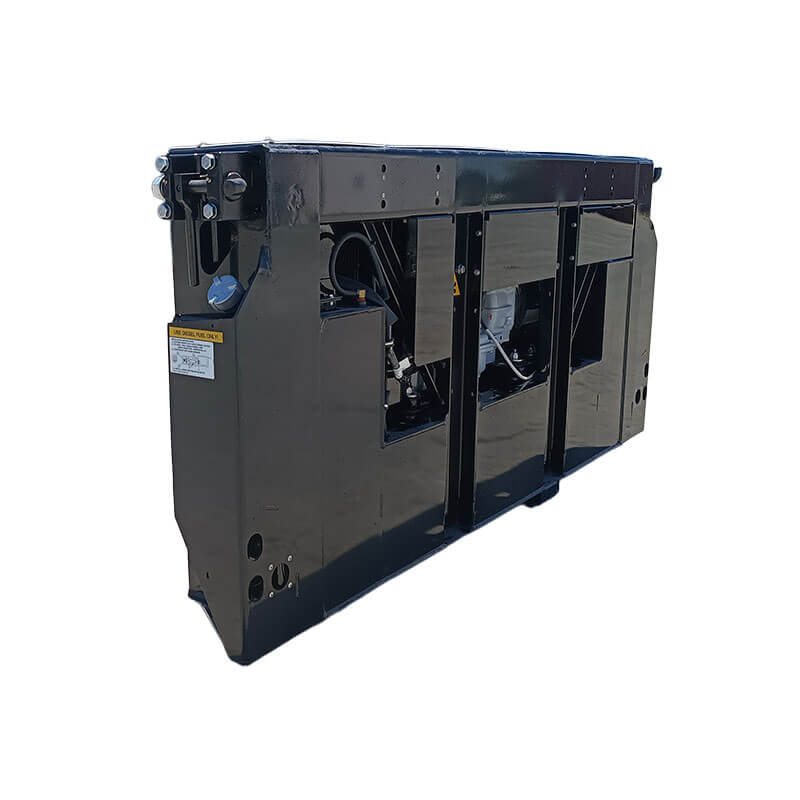

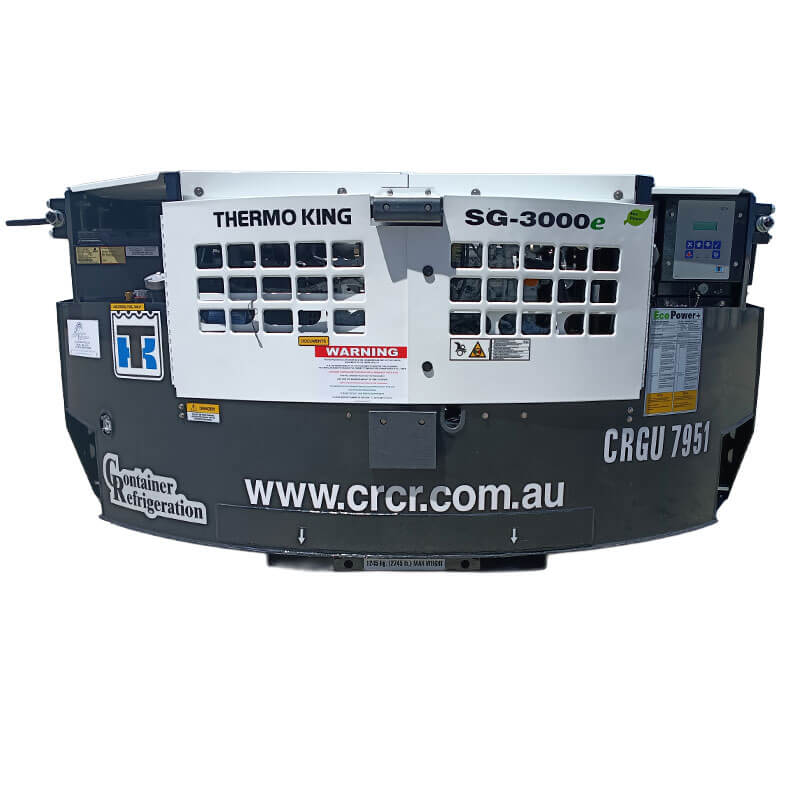

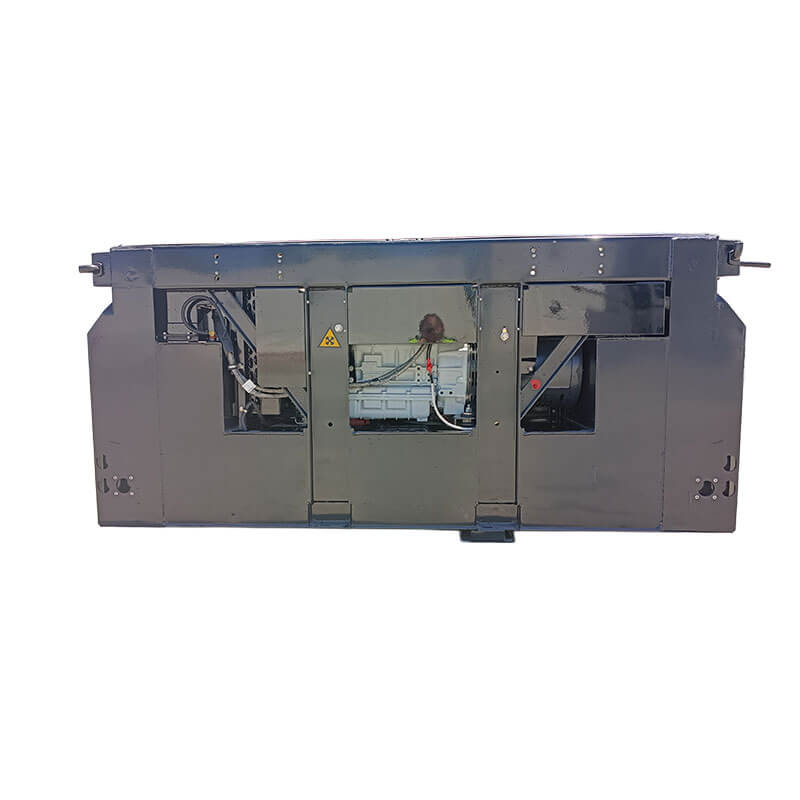

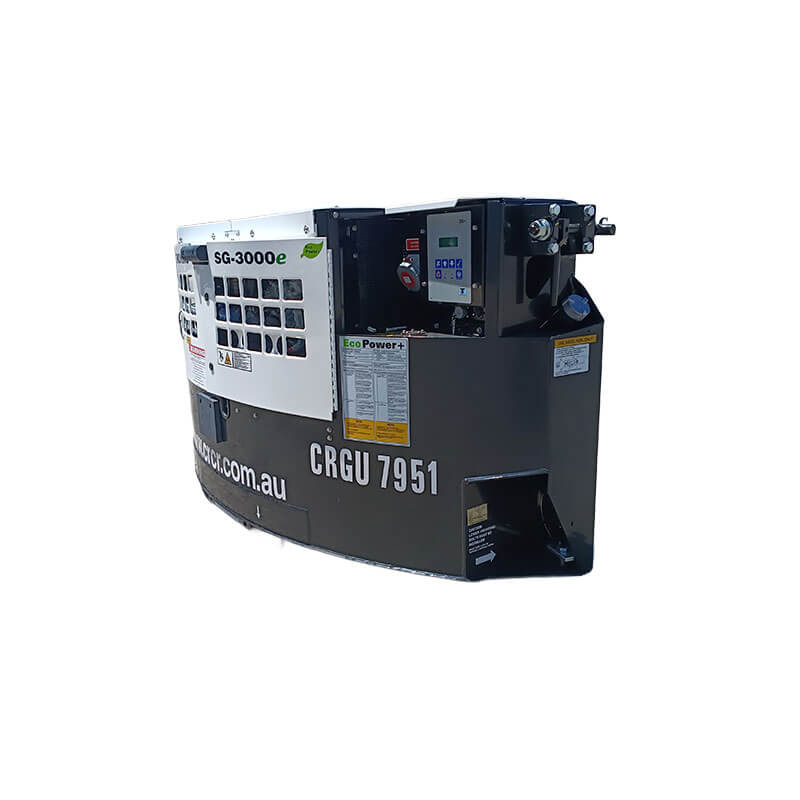

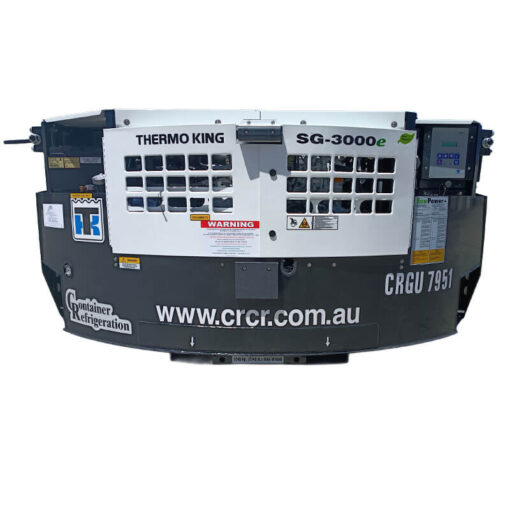

Container Clip On Generator Thermoking SG 3000e
External Dimentions
| Length | 2337mm (92.0 in) |
| Width | 710 mm (27.97 in) |
| Height | 1053 mm (41.45in) |
Weight & Capacity
| Gross | 818 kg (1804 lbs) |
Power
| Phase | 3 |
Additional information
| Phase | 3Phase |
|---|---|

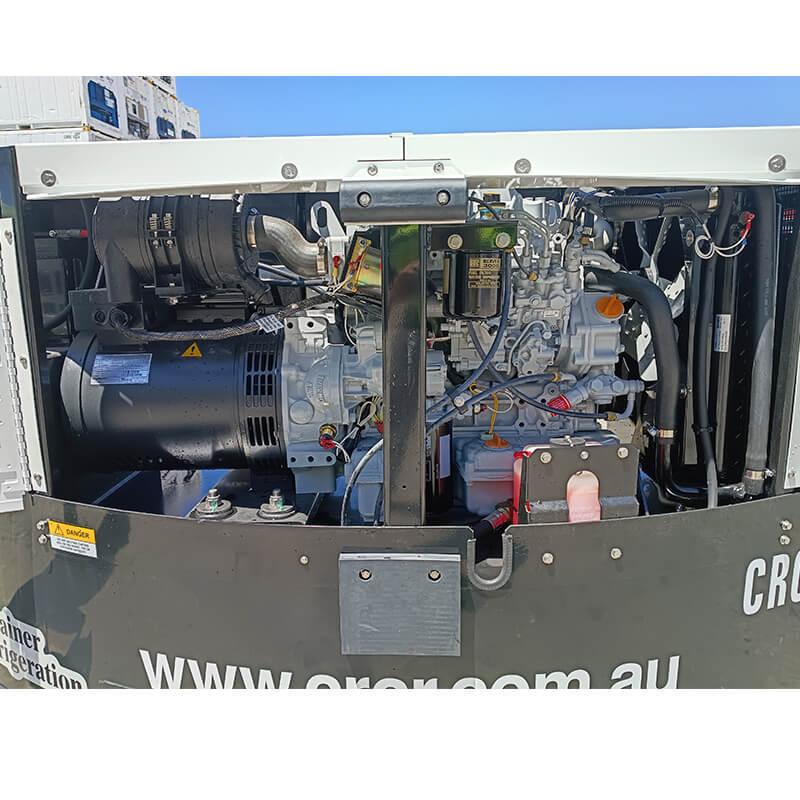

| Generator | 60Hz generator with a TK Diesel engine 30,1 hp |
| Fuel | Diesel |
| Weight | 8181 kg |
| Fuel Tank Size | 473 L |
| Run time | 8 to 10 days continuous operation depending if eco power option is on/off |
Container Delivery & Transport Options
Choosing the right truck type helps make your container delivery safer, smoother and more cost-effective. Review the main transport options below to help plan access, clearance and placement before delivery.
▣
Side Loader / Swing Lift
Best for: sites with clear side access.
A side loader unloads the container from the driver’s side of the truck, placing the container beside the vehicle
- Fast and efficient unloading
- Suitable for most standard deliveries
- Requires enough width for truck and container
Clearance Required
20ft: 4.6m H x 6m W x 10m L
40ft: 4.6m H x 6m W x 16m L
▤
Tilt Tray Truck
Best for: cost-effective delivery where rear access is available.
A tilt tray reverses into position, tilts the tray and slides the container off the rear as the truck moves forward.
- Usually the cheapest transport option
- Suitable for empty or lighter containers
- Weight restrictions can apply
Clearance Required
20ft: 5m H x 3.5m W x 20m L
40ft: 6m H x 3.5m W x 40m L
▥
Tilt Tray Truck
Best for: tight access, uneven ground or precise placement.A Hiab truck uses a mounted crane to lift and position the container more accurately, including onto blocks for levelling.- Most precise placement option
- Helpful for difficult access sites
- Can place containers approx. 4m from the truck
Clearance Required
20ft: 4.6m entry height, 10m unload height, 3.5m W x 10m L
40ft: 4.6m entry height, 10m unload height, 3.5m W x 20m L
Before Delivery, Please Check
✓ Suitable access and clearance
✓ Firm, level ground
✓ No trees, awnings or overhead obstacles
✓ At least 1m clearance from power lines
✓ 1.2m gap for refrigerated container airflow
✓ Container door direction confirmed
Unsure Which Truck Type Suits Your Site?
Our team can help determine the most suitable delivery method based on your site access, clearance and container placement requirements
