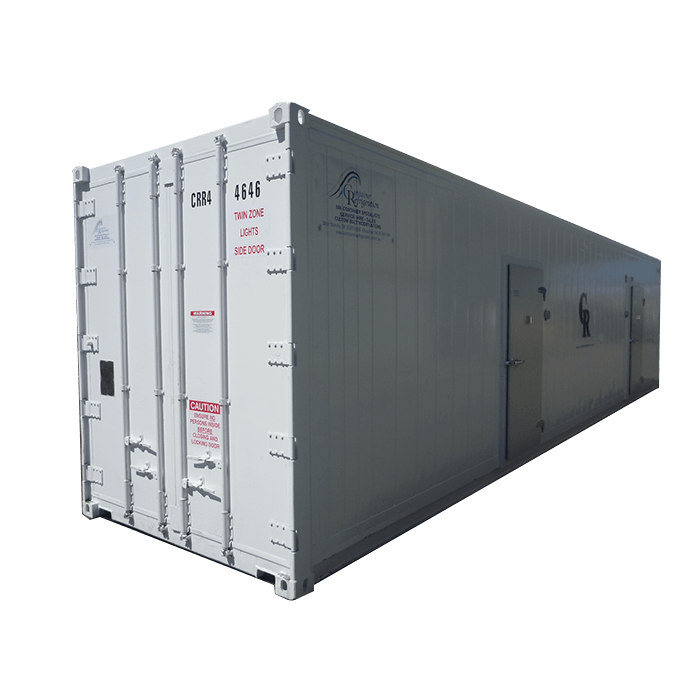

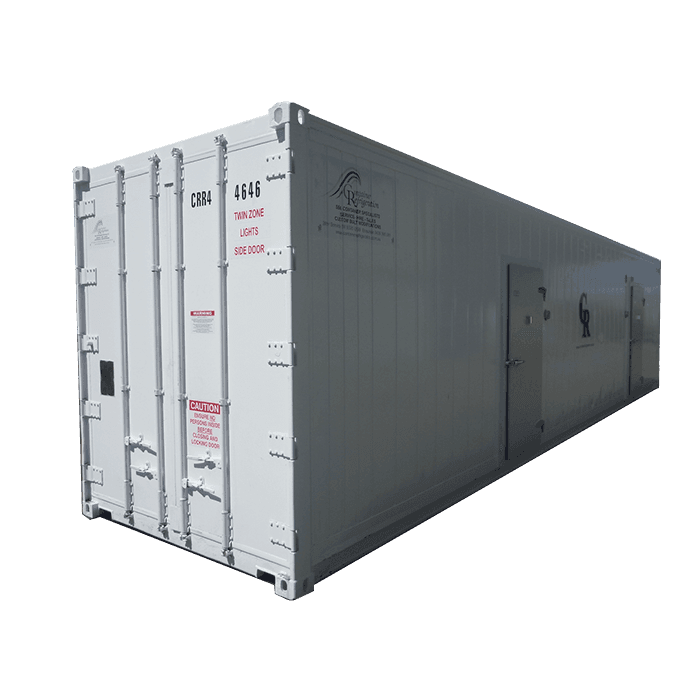

40' High Cube Three Phase Refrigerated - Twin Zone Type 2 - Side Doors

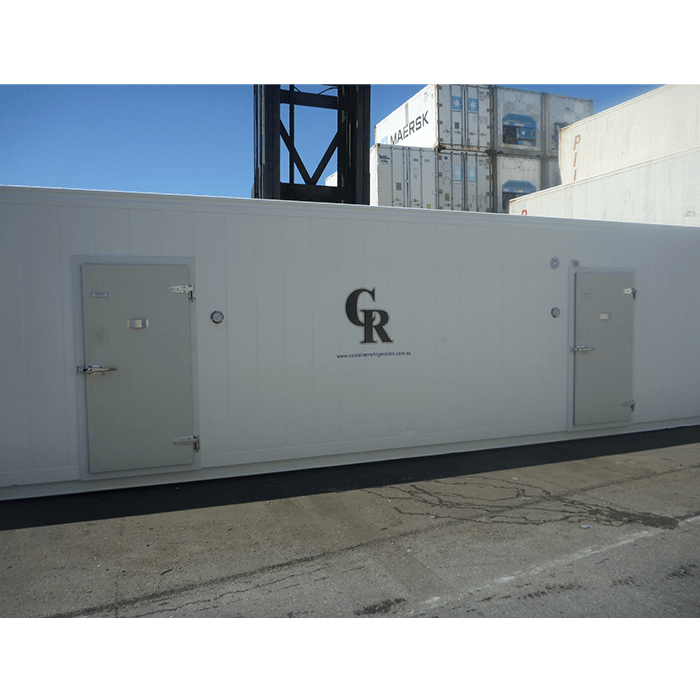

40' High Cube Three Phase Refrigerated - Twin Zone Type 2 - Side Doors - Image 2

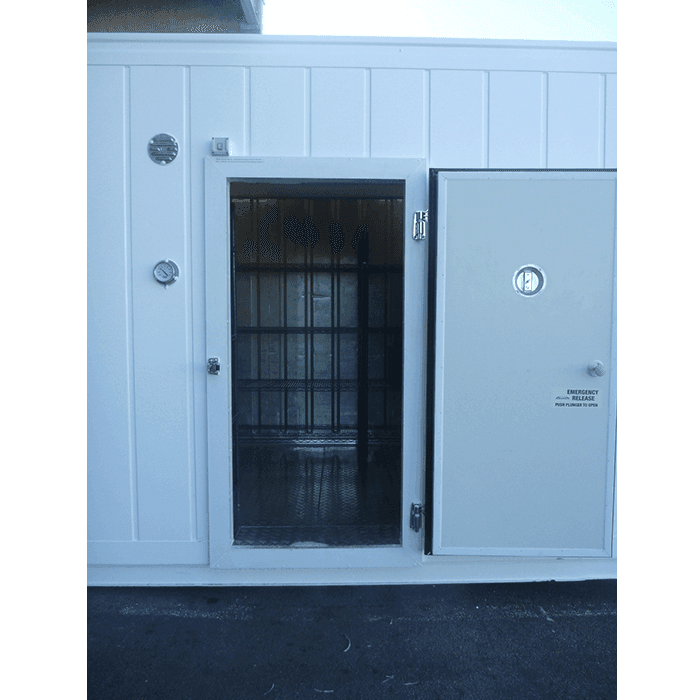

40' High Cube Three Phase Refrigerated - Twin Zone Type 2 - Side Doors - Image 3

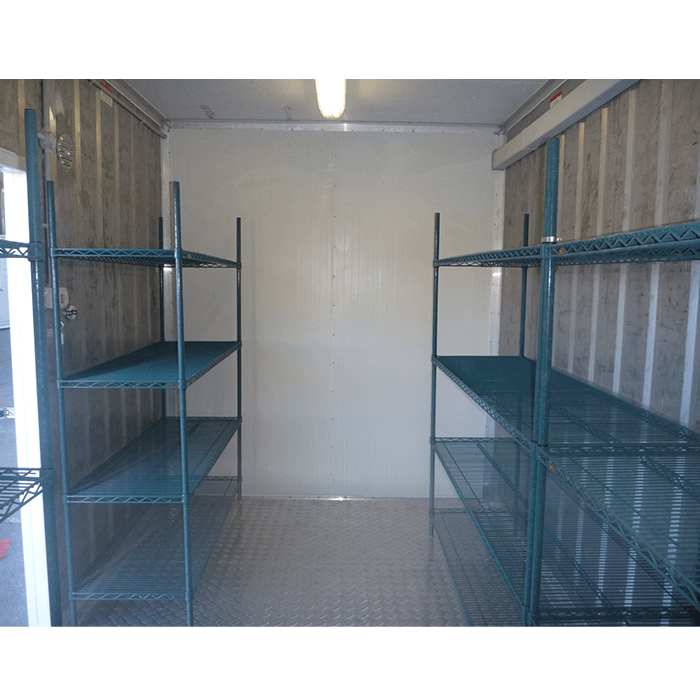

40' High Cube Three Phase Refrigerated - Twin Zone Type 2 - Side Doors - Image 4

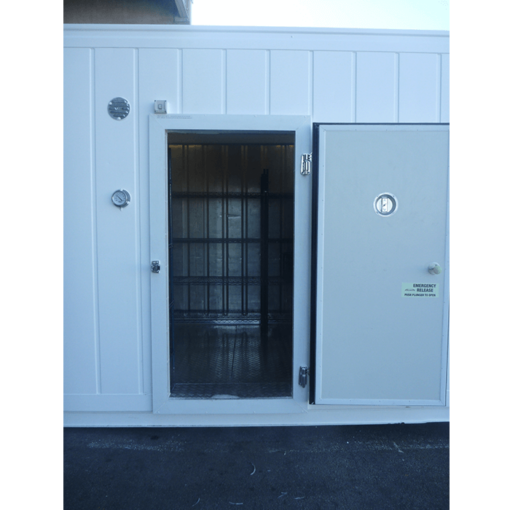

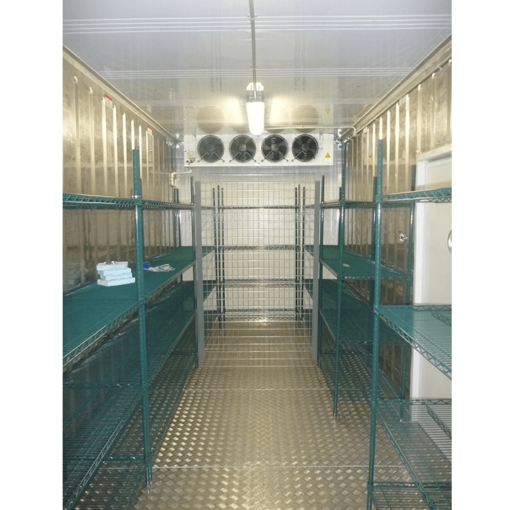

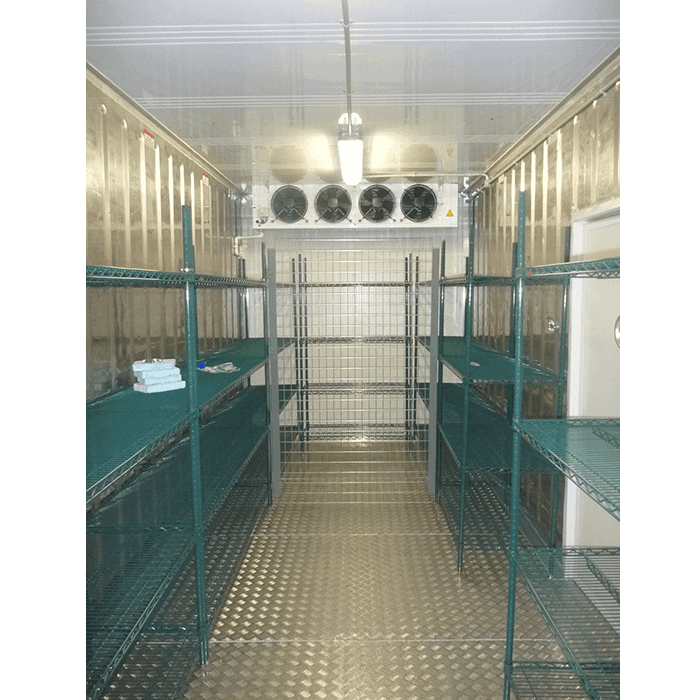

40' High Cube Three Phase Refrigerated - Twin Zone Type 2 - Side Doors - Image 5

40′ High Cube Three Phase Refrigerated – Twin Zone Type 2 – Side Doors

SKU 40-HC-RF3PH-TZ-T2 Categories , , , Tags , , , , , ,

Description

This 40′ high cube spacious three phase container has been purpose built to house both chilled and frozen perishable items. Built with two personnel access doors one giving access to the chilled section  and the other to the frozen section, it makes stacking and navigating through items much more easier. Full Controlled Operation: Variable automatic defrost cycle, Automatic temperature sensing & monitoring. The container will be pre-set for you. Freezer –20ºC & Chiller +2ºC

External Dimentions
Length 40' Ft , 12192 mm
Width 8’ Ft , 2438 mm
Height 9'6
Internal Dimentions
Length 11493 mm
Width 2294 mm
Height 2500 mm
Door Openings
Width 2294 mm
Height 2440 mm
Weight & Capacity
Capacity 2348 Cft , 66.5 Cu.m
Tare 9150 Lbs , 4150 Kgs
Net 62560 Lbs , 28.350 Kgs
Gross 71650 Lbs , 32500 Kgs
Power
Phase 3
Voltage 440 V
Running Amp Draw 21 Amps
Plug Type 4 Pin 32 Amp
Outlet Required 4 or 5 Pin 32 Amp Female Socket
Temp Range -25ºC to +25ºC
