40′ High Cube 2 Pallet Wide 3 Phase Refrigerated

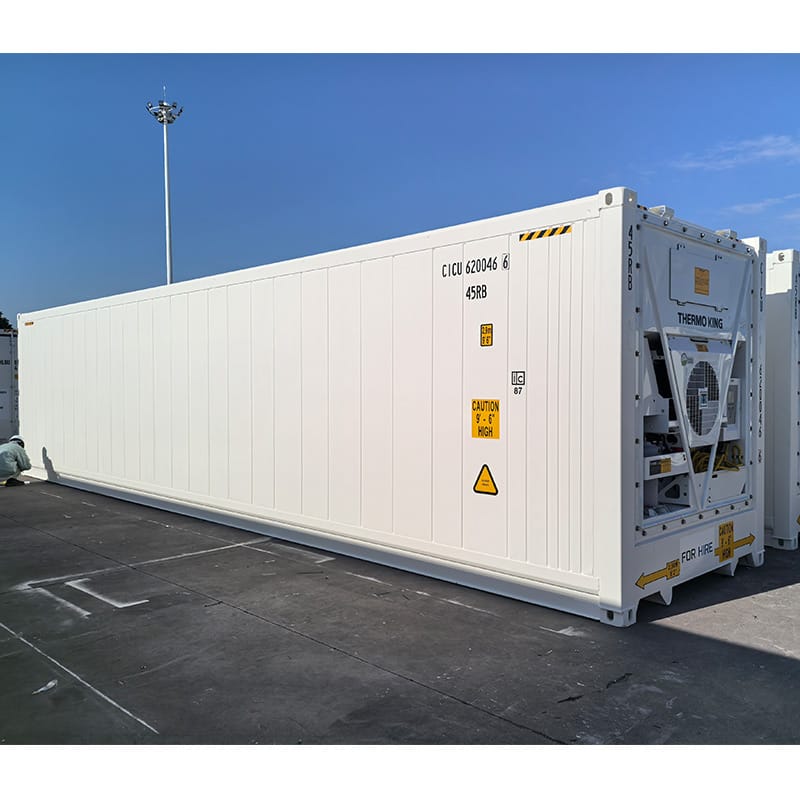

40ft RF hc 2 pallet wide container front
40ft RF hc 2 pallet wide container rear



SKU 40-HC-RF3PH-STD-1 Categories , , Tags , , , , ,

Description

A spacious 40′ high cube 3 phase refrigerated container manufactured to accommodate 2 x Australian pallets side-by-side.

  • Extra foot higher than the standard 8’6” making it High Cube (9’6″)
  • Manufactured to accommodate 2 x Australian pallets side-by-side. Built with a smaller wall profile depth to allow for two Australian standard pallets to slide in.
  • These shipping containers are legal for transport by road, rail and sea.
  • Full Controlled Operation
  • Variable automatic defrost cycle
  • Automatic temperature sensing & monitoring.
  • Please check your precise requirements with us. The container will be pre-set for you.
  • Can be set for freezer or chiller application.
External Dimentions
Length 40' Ft , 12192 mm
Width 8,2
Height 9'6, 2896 mm
Internal Dimentions
Length 12036 mm
Width 2390 mm
Height 2698 mm
Door Openings
Width 1140 mm
Height 2569 mm
Weight & Capacity
Capacity 2400 CFt , 67.9 Cu.m
Tare 9240 Lbs , 4720 Kgs
Net 64550 Lbs , 29280 Kgs
Gross 74960 Lbs , 34000 Kgs
Power
Phase 3
Voltage 440 V
Running Amp Draw 21 Amps
Plug Type 4 Pin 32 Amp
Outlet Required 4 or 5 Pin 32 Amp Female Socket
Temp Range -25ºC to +25ºC

Additional information

Grade

A2- A Grade, A0 – New Container, A1- A Grade

Applications

Contract Catering, Special Events, Restaurants, Food Processors, Supermarkets, Butchers, Food & Beverages, Ice Cream

Container Delivery & Transport Options

Choosing the right truck type helps make your container delivery safer, smoother and more cost-effective. Review the main transport options below to help plan access, clearance and placement before delivery.

▣

Side Loader / Swing Lift

Best for: sites with clear side access.

A side loader unloads the container from the driver’s side of the truck, placing the container beside the vehicle

  • Fast and efficient unloading
  • Suitable for most standard deliveries
  • Requires enough width for truck and container
Clearance Required

20ft: 4.6m H x 6m W x 10m L
40ft: 4.6m H x 6m W x 16m L

▤

Tilt Tray Truck

Best for: cost-effective delivery where rear access is available.

A tilt tray reverses into position, tilts the tray and slides the container off the rear as the truck moves forward.

  • Usually the cheapest transport option
  • Suitable for empty or lighter containers
  • Weight restrictions can apply
Clearance Required

20ft: 5m H x 3.5m W x 20m L
40ft: 6m H x 3.5m W x 40m L

▥

Tilt Tray Truck

Best for: tight access, uneven ground or precise placement.A Hiab truck uses a mounted crane to lift and position the container more accurately, including onto blocks for levelling.
  • Most precise placement option
  • Helpful for difficult access sites
  • Can place containers approx. 4m from the truck
Clearance Required

20ft: 4.6m entry height, 10m unload height, 3.5m W x 10m L
40ft: 4.6m entry height, 10m unload height, 3.5m W x 20m L

Before Delivery, Please Check

✓ Suitable access and clearance

✓ Firm, level ground

✓ No trees, awnings or overhead obstacles

✓ At least 1m clearance from power lines

✓ 1.2m gap for refrigerated container airflow

✓ Container door direction confirmed

Unsure Which Truck Type Suits Your Site?

Our team can help determine the most suitable delivery method based on your site access, clearance and container placement requirements
