20′ Refrigerated 3 Phase Portabar New Look 2 X Servery

Description

Built with the best layout in mind for the user, our new look 20′ Refrigerated Portabar is ideal for small to medium sized events.

  • 20’ (6m) 3 phase refrigerated container bar
  • The Portabar has been built with the best layout in mind for the user evolving from many previous designs over the years
  • The bar is fully secured for the operators & has restricted access through a personal door with 2x lockable roller door serverys
  • The servery section has a bar top, depending on model either stainless steel or jarrah slice

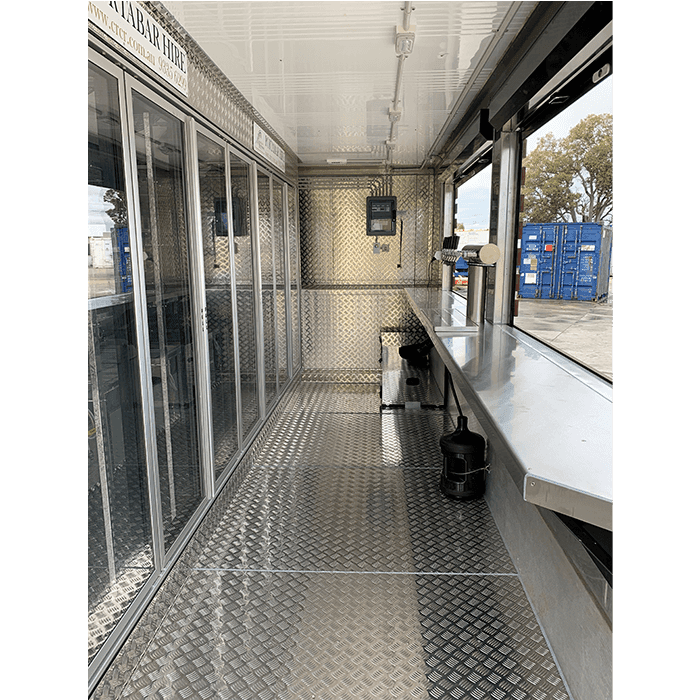

  • Behind the operator is an 8 door bottle cabinet with 5 tier shelves & blue neon lighting
  • Due to its high security, the Portabar is perfect for functions where a secure bar is required & where it may be located on its own in the middle of an event. It is also perfect for private functions if you have the room
  • The Refrigeration unit is 3 Phase plugin, 18m of cable with 5 pin 32amp plug. This unit is very efficient & quiet running
External Dimentions
Length 20' Ft , 6058 mm
Width 8’ Ft , 2438 mm
Height 8'6
Power
Phase 3
Voltage 440 V
Running Amp Draw 21 Amps
Plug Type 5 Pin 32 Amp
Outlet Required 4 or 5 Pin 32 Amp Female Socket
Temp Range -25ºC to +25ºC

Additional information

Dimensions6058 × 2438 × 2591 mm

Container Delivery & Transport Options

Choosing the right truck type helps make your container delivery safer, smoother and more cost-effective. Review the main transport options below to help plan access, clearance and placement before delivery.

Side Loader / Swing Lift

Best for: sites with clear side access.

A side loader unloads the container from the driver’s side of the truck, placing the container beside the vehicle

  • Fast and efficient unloading
  • Suitable for most standard deliveries
  • Requires enough width for truck and container
Clearance Required

20ft: 4.6m H x 6m W x 10m L
40ft: 4.6m H x 6m W x 16m L

Tilt Tray Truck

Best for: cost-effective delivery where rear access is available.

A tilt tray reverses into position, tilts the tray and slides the container off the rear as the truck moves forward.

  • Usually the cheapest transport option
  • Suitable for empty or lighter containers
  • Weight restrictions can apply
Clearance Required

20ft: 5m H x 3.5m W x 20m L
40ft: 6m H x 3.5m W x 40m L

Tilt Tray Truck

Best for: tight access, uneven ground or precise placement.A Hiab truck uses a mounted crane to lift and position the container more accurately, including onto blocks for levelling.
  • Most precise placement option
  • Helpful for difficult access sites
  • Can place containers approx. 4m from the truck
Clearance Required

20ft: 4.6m entry height, 10m unload height, 3.5m W x 10m L
40ft: 4.6m entry height, 10m unload height, 3.5m W x 20m L

Before Delivery, Please Check

✓ Suitable access and clearance

✓ Firm, level ground

✓ No trees, awnings or overhead obstacles

✓ At least 1m clearance from power lines

✓ 1.2m gap for refrigerated container airflow

✓ Container door direction confirmed

Unsure Which Truck Type Suits Your Site?

Our team can help determine the most suitable delivery method based on your site access, clearance and container placement requirements
