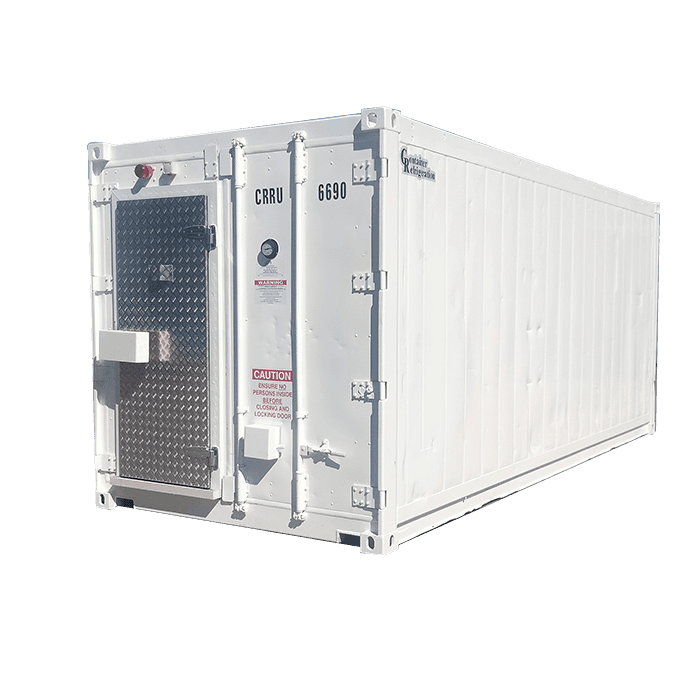

20′ Three Phase Refrigerated 2/3 Chiller 1/3 Freezer – Twin Zone Type 1 – Internal Door

Description

Frozen and Chiller Storage Solutions

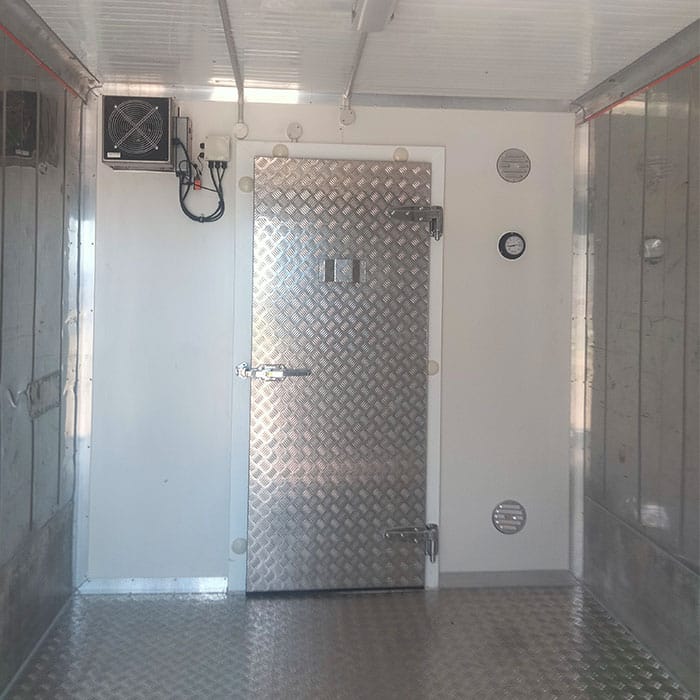

Our 20′ Hybrid Freezer and Chiller Storage Container Systems offers flexibility and reliability to our customers with the functionality of both chiller and freezer systems.  The two sections are separated with insulated panelling featuring an installed personnel door.  Each section can have its temperature altered separately and can be fitted with accessories just as shelving, lighting and safety features.  This product is perfect for restaurants, bars, grocery stores and others in the food and catering industry. Our refrigerated and freeze hybrid units are also regularly used by the mining & resources industry due to their reliability and built-in safety features.

Modifiable Refrigerated Container Design

The design of our 2/3 Chiller 1/3 Freezer Three Phase Refrigerated Container Units is easily modified by our expert team and we will work with you to create the storage solution to suit your needs. Common modifications selected by our customers include shelving, LED internal lighting, Dial Thermometers and Ali Checker Flooring as well as safety features such as  Trapped Personnel E Stop buttons with external sirens and flashing lights.

Easy to Transport and Install

Our range of 20′  Refrigerated offers our customers a small site footprint and are easy t o transport and install. Container Refrigeration offers professional delivery services for our customers that will ensure that our containers are delivered to the site on time and in safe hands. The container will be pre-set for you. Freezer –20ºC & Chiller +2ºC.

Container Delivery & Transport Options

Choosing the right truck type helps make your container delivery safer, smoother and more cost-effective. Review the main transport options below to help plan access, clearance and placement before delivery.

Side Loader / Swing Lift

Best for: sites with clear side access.

A side loader unloads the container from the driver’s side of the truck, placing the container beside the vehicle

  • Fast and efficient unloading
  • Suitable for most standard deliveries
  • Requires enough width for truck and container
Clearance Required

20ft: 4.6m H x 6m W x 10m L
40ft: 4.6m H x 6m W x 16m L

Tilt Tray Truck

Best for: cost-effective delivery where rear access is available.

A tilt tray reverses into position, tilts the tray and slides the container off the rear as the truck moves forward.

  • Usually the cheapest transport option
  • Suitable for empty or lighter containers
  • Weight restrictions can apply
Clearance Required

20ft: 5m H x 3.5m W x 20m L
40ft: 6m H x 3.5m W x 40m L

Tilt Tray Truck

Best for: tight access, uneven ground or precise placement.A Hiab truck uses a mounted crane to lift and position the container more accurately, including onto blocks for levelling.
  • Most precise placement option
  • Helpful for difficult access sites
  • Can place containers approx. 4m from the truck
Clearance Required

20ft: 4.6m entry height, 10m unload height, 3.5m W x 10m L
40ft: 4.6m entry height, 10m unload height, 3.5m W x 20m L

Before Delivery, Please Check

✓ Suitable access and clearance

✓ Firm, level ground

✓ No trees, awnings or overhead obstacles

✓ At least 1m clearance from power lines

✓ 1.2m gap for refrigerated container airflow

✓ Container door direction confirmed

Unsure Which Truck Type Suits Your Site?

Our team can help determine the most suitable delivery method based on your site access, clearance and container placement requirements
