20′ Single Phase Refrigerated Chiller Only

20′ Single Phase Refrigerated Chiller Only

SKU 20-RF1PH-CO Categories , , Tag

Description

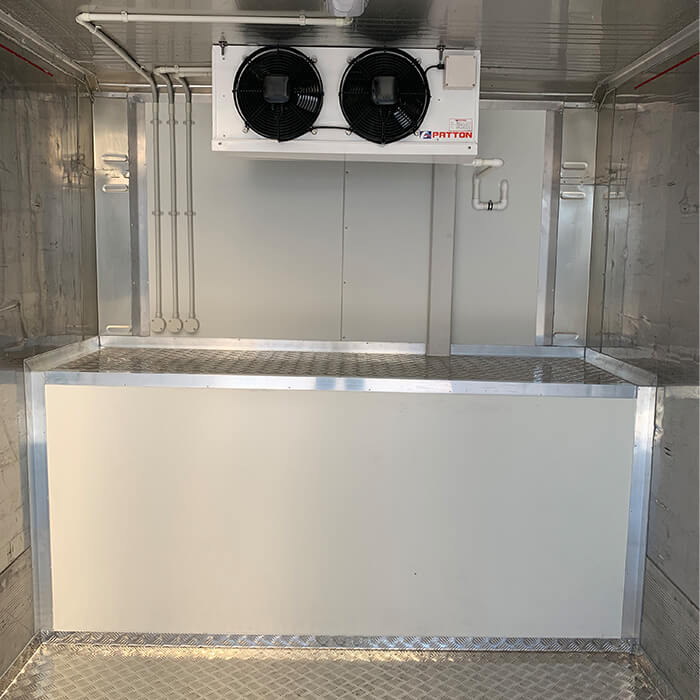

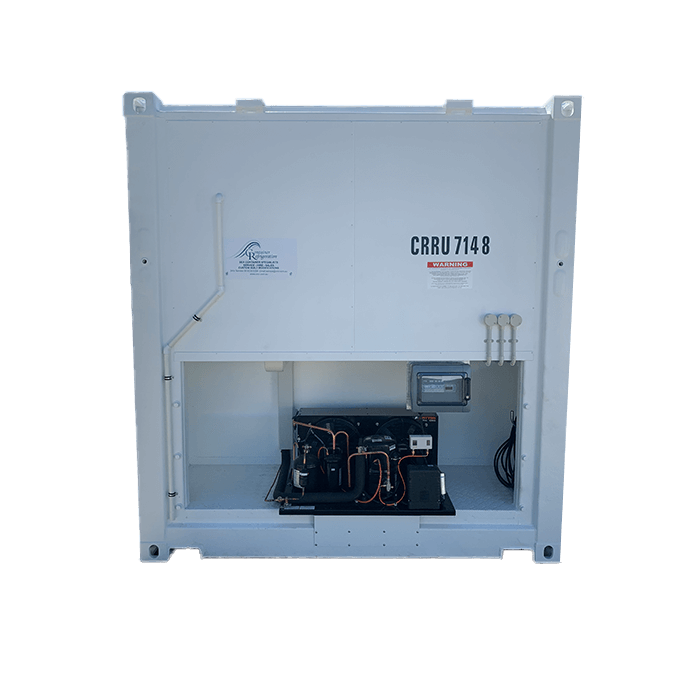

Standard 20’ (6m) insulated container fitted with single phase refrigeration unit. Condenser mounted on roof, Evaporator/blower mounted inside from ceiling. Full Controlled Operation: Automatic temperature sensing & monitoring. Please check your precise equirements with us. The container will be pre-set for you. NOTE: Beware of extra height of this unit (3130mm), compared to standard 8’6” (2591mm). Check location where container is going overhangs etc.

External Dimentions
Length 20' Ft , 6058 mm
Width 8’ Ft , 2438 mm
Height 8'6
Internal Dimentions
Length 5425 mm
Width 2275 mm
Height 2260 mm
Door Openings
Width 2258 mm
Height 2216 mm
Weight & Capacity
Capacity 1000 CFt , 28.3 Cu.m
Tare 7040 Lbs , 3200 Kgs
Net 45760 Lbs , 20800 Kgs
Gross 52816 Lbs , 24000 Kgs
Power
Phase 1
Voltage 240 V
Running Amp Draw 10 Amp Approx
Plug Type 3 Pin 10 Amp
Outlet Required Ordinary 3 Pin 10 Amp House hold socket ** Requires designated Circuit**
Temp Range Chiller only +1ºC to +15ºC
