Rehearsal Room

Description

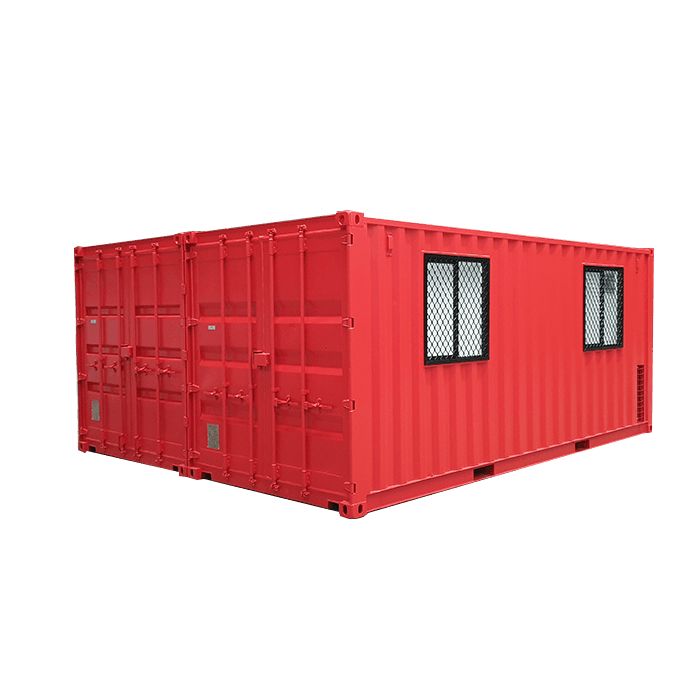

2x 20’ x 8 x 8’6” Dry Insulated Containers joined together and heavily modified with an abundance of features. This special container is soundproof and provides a spacious atmosphere for whoever enters it, making it the prefect rehearsal room setting. The container can be used for many other uses as well. Let your imagination take charge and enquire with us today.

STRUCTURAL

  • LH Wall Removed for joining containers together Internal Roof Supports, Galv RHS, 1x per container

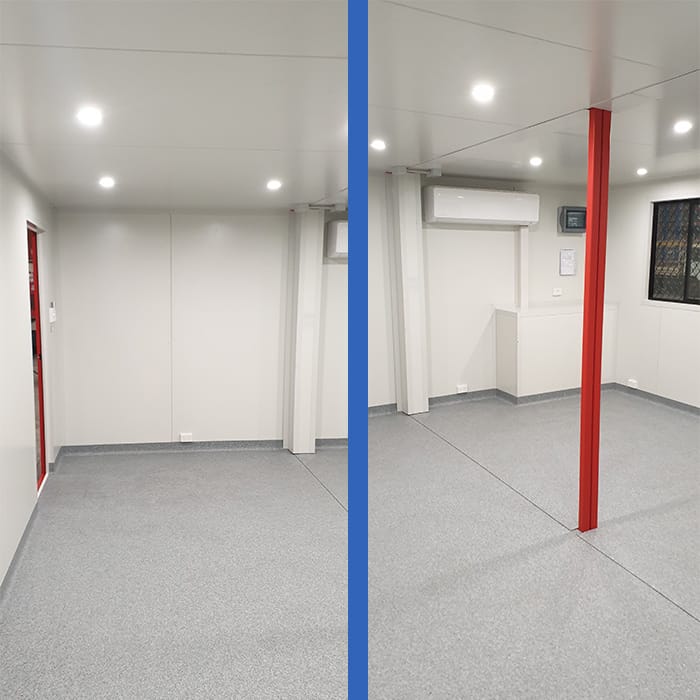

  • Interior Insulated with 50mm Coolroom Panels Surfmist

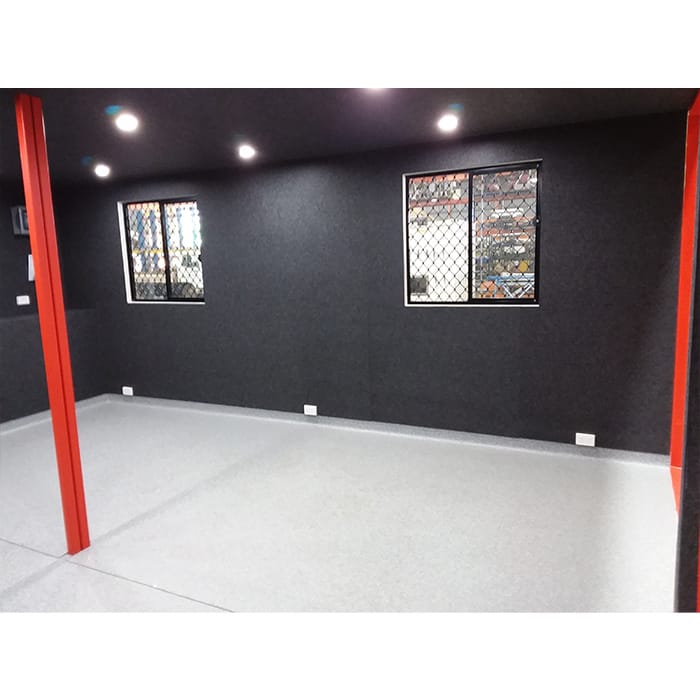

  • Interior Insulated with 7mm Acoustic Panel, Echo Panel 542 Colour: Charcoal

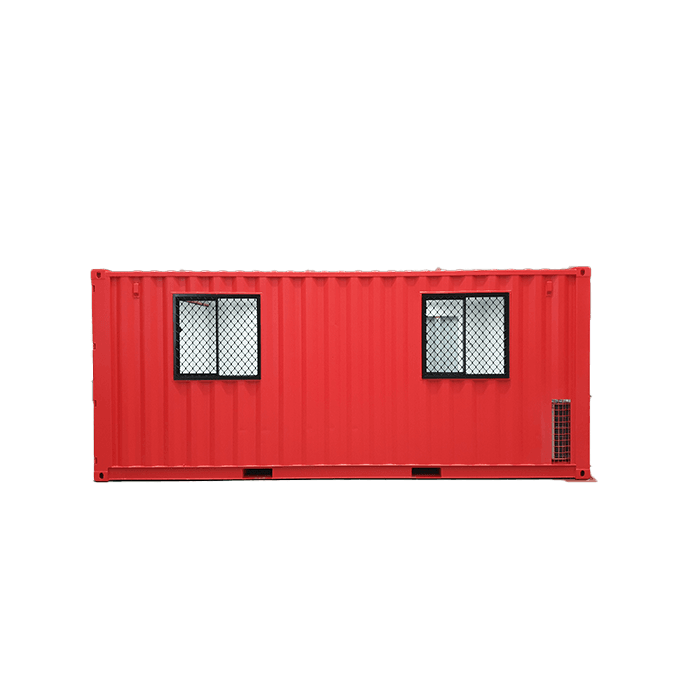

  • 2x Sliding Windows, 1m x 1m with Diamond Grilled Security Screen, (Cont 2 RH Side)
  • Vinyl Flooring with coving, Classic Mystique, Colour: 1160 Smokestone (Dark Charcoal)



ELECTRICAL

  • 6x Internal Downlights-LED 9W, 700LM, note: Colour switchable output 3000K/4000K/6000K, switch located at the back of the light, the tone gets brighter with each setting, 3000K look orange 6000K is clear white

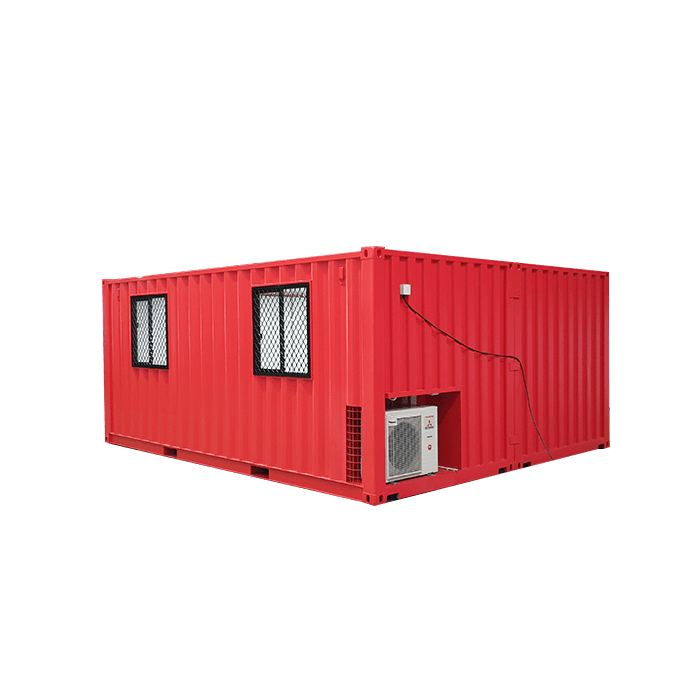

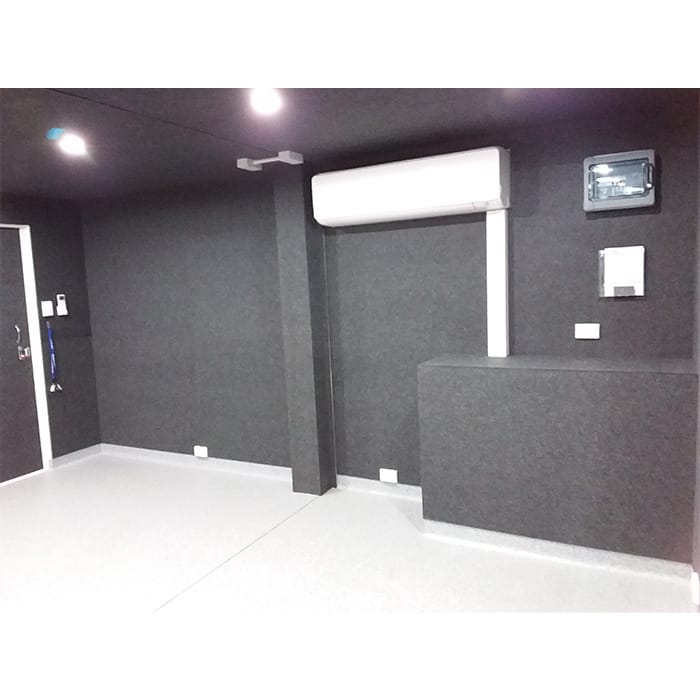

  • Mitsubishi 7.1kw Split System Air Conditioner Recessed Rear Right Hand Side (Container 2) Condensing unit Recessed into the back wall, Evap/Blower mounted to end wall
  • A4 Brochure Holder rear wall RH Side
  • Electrical box lockable with RCD & C/B’s rear wall Note: Electrical GPO’s are on 2x Circuits
  • 4x Double GPO
  • 1x Double GPO with 2x USB charge points, Rear Wall above recessed box section
  • Junction box for wiring containers together located in the ceiling at the rear of the container
  • Power Connection: All inter wired to external junction box
    ready to hard wire
External Dimentions
Length 20' Ft, 6060 mm
Width 16'Ft, 4880 mm
Height 8'6
Internal Dimentions
Length 5740 mm
Width 4645 mm
Height 2300 mm

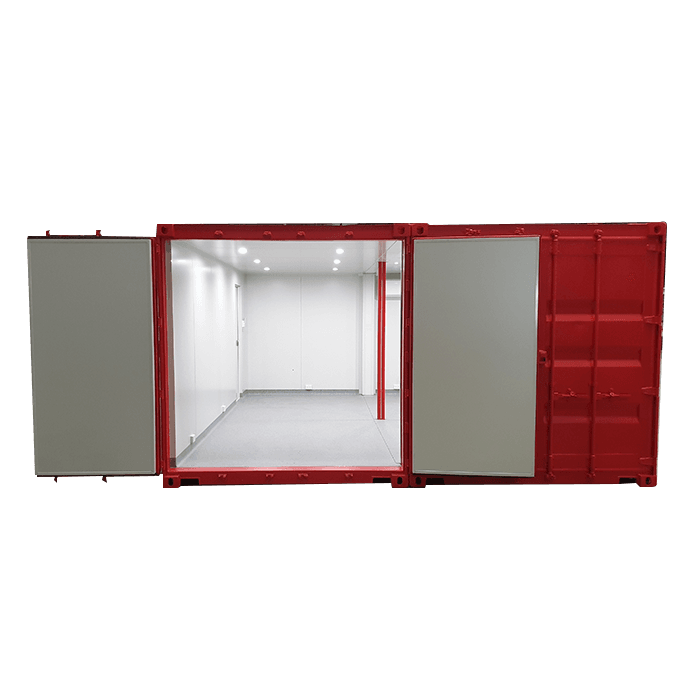

Door Openings
Width 2343 mm
Height 2280 mm
Weight & Capacity
Tare 5500 Kgs
Power
Phase 1
Voltage 240 V
Running Amp Draw 9 Amp
Plug Type 3 Pin 10 Amp
Outlet Required 3 Pin 10 Amp GPO
AC Mounting Recessed

Container Delivery & Transport Options

Choosing the right truck type helps make your container delivery safer, smoother and more cost-effective. Review the main transport options below to help plan access, clearance and placement before delivery.

Side Loader / Swing Lift

Best for: sites with clear side access.

A side loader unloads the container from the driver’s side of the truck, placing the container beside the vehicle

  • Fast and efficient unloading
  • Suitable for most standard deliveries
  • Requires enough width for truck and container
Clearance Required

20ft: 4.6m H x 6m W x 10m L
40ft: 4.6m H x 6m W x 16m L

Tilt Tray Truck

Best for: cost-effective delivery where rear access is available.

A tilt tray reverses into position, tilts the tray and slides the container off the rear as the truck moves forward.

  • Usually the cheapest transport option
  • Suitable for empty or lighter containers
  • Weight restrictions can apply
Clearance Required

20ft: 5m H x 3.5m W x 20m L
40ft: 6m H x 3.5m W x 40m L

Tilt Tray Truck

Best for: tight access, uneven ground or precise placement.A Hiab truck uses a mounted crane to lift and position the container more accurately, including onto blocks for levelling.
  • Most precise placement option
  • Helpful for difficult access sites
  • Can place containers approx. 4m from the truck
Clearance Required

20ft: 4.6m entry height, 10m unload height, 3.5m W x 10m L
40ft: 4.6m entry height, 10m unload height, 3.5m W x 20m L

Before Delivery, Please Check

✓ Suitable access and clearance

✓ Firm, level ground

✓ No trees, awnings or overhead obstacles

✓ At least 1m clearance from power lines

✓ 1.2m gap for refrigerated container airflow

✓ Container door direction confirmed

Unsure Which Truck Type Suits Your Site?

Our team can help determine the most suitable delivery method based on your site access, clearance and container placement requirements
