40’ High Cube Open side Superfolding Doors

40’ High Cube Shipping Container with Open side Superfolding Doors with front doors open

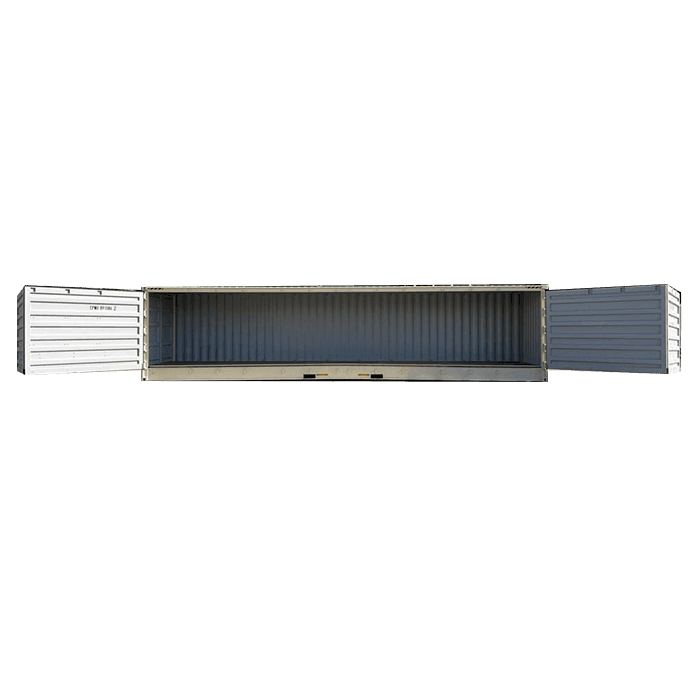

40’ High Cube Shipping Container with Open side Superfolding Doors Open

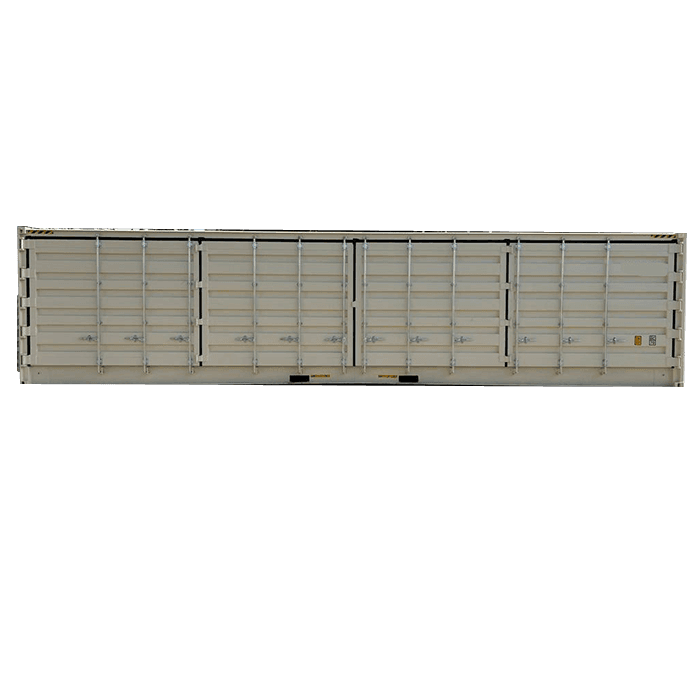

40’ High Cube Shipping Container with Open side Superfolding Doors closed

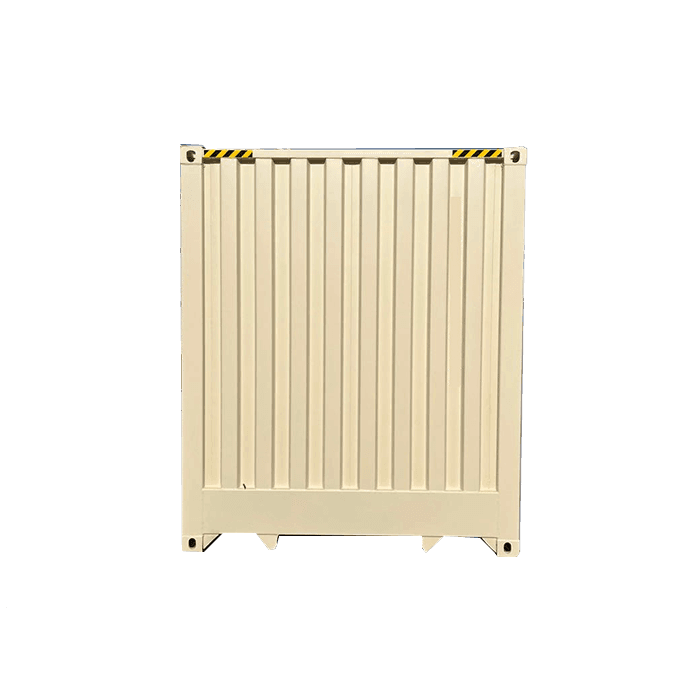

40’ High Cube Shipping Container with Open side Superfolding Doors Rear view

Category Specialised Shipping Containers

Description

40Ft HC Dry Container with Side Opening Doors, used for the storage of oversize cargo.
ISO shipping container used for the storage of oversize cargo. Entire Right hand side wall opens up and allows easy access for large and bulky items. Perfect for large equipment storage which can’t be loaded through the standard
double doors.

Condition: Brand New CSC Certified, Weatherproof, these containers are new but used once for the trip to Fremantle. They may have minor scratches, scuff marks on floor and small dents.

Applications
– Large Equipment Storage
– Onsite Rental Companies

Features
-Double Doors
-Superfolding doors RH side wall
-Ply wood floor
-Fork pockets

External Dimensions
Length Width Height
40’x 8’x 9’6”
6,050 mm 2,440 mm 2,896 mm

Upgrades / Modifications
We can perform any of the following modifications, contact us for a quote
-External Painting
-Lighting, (internal & external)
-GPO’s

External Dimentions

Length	40' Ft , 12192 mm
Width	8’ Ft , 2438 mm
Height	9'6" Ft , 2896 mm

Additional information

Weight	4260 kg
Dimensions	12192 × 2438 × 2896 mm

Container Delivery & Transport Options

Choosing the right truck type helps make your container delivery safer, smoother and more cost-effective. Review the main transport options below to help plan access, clearance and placement before delivery.

▣

Side Loader / Swing Lift

Best for: sites with clear side access.

A side loader unloads the container from the driver’s side of the truck, placing the container beside the vehicle

Fast and efficient unloading
Suitable for most standard deliveries
Requires enough width for truck and container

Clearance Required

20ft: 4.6m H x 6m W x 10m L
40ft: 4.6m H x 6m W x 16m L

▤

Tilt Tray Truck

Best for: cost-effective delivery where rear access is available.

A tilt tray reverses into position, tilts the tray and slides the container off the rear as the truck moves forward.

Usually the cheapest transport option
Suitable for empty or lighter containers
Weight restrictions can apply

Clearance Required

20ft: 5m H x 3.5m W x 20m L
40ft: 6m H x 3.5m W x 40m L

▥

Tilt Tray Truck

Best for: tight access, uneven ground or precise placement.A Hiab truck uses a mounted crane to lift and position the container more accurately, including onto blocks for levelling.

Most precise placement option
Helpful for difficult access sites
Can place containers approx. 4m from the truck

Clearance Required

20ft: 4.6m entry height, 10m unload height, 3.5m W x 10m L
40ft: 4.6m entry height, 10m unload height, 3.5m W x 20m L

Before Delivery, Please Check

✓ Suitable access and clearance

✓ Firm, level ground

✓ No trees, awnings or overhead obstacles

✓ At least 1m clearance from power lines

✓ 1.2m gap for refrigerated container airflow

✓ Container door direction confirmed

Unsure Which Truck Type Suits Your Site?

Our team can help determine the most suitable delivery method based on your site access, clearance and container placement requirements
